IBC CONTAINER WASHING STATION
Container washing stations IBC Containers® are designed for effective cleaning and drying of IBC containers of all sizes. The washing cycles are programmable according to the bulk materials previously stored. With a high-pressure washing, all interior and exterior surfaces of your storage IBC container are cleaned up for total hygiene.
This solution promises a minimum commitment of your operators and helps you to save considerable time in the cleaning process of your metallic storage containers.
-
Automation5
Introduction of the storage container into the washing compartment
Cleaning stage of the inside of the container
Cleaning stage of the outside of the container
Outlet of the clean container through the opposite door
The washing of the inside of the container (IBC) is performed through a series of high pressure jets that follow an automatic process to ensure a total cleaning of all the surfaces. The power of the water jets enables to remove all substances from all surfaces and to prevent contamination.
The external cleaning is done via static nozzles strategically set to clean all the container surfaces but also the top and the drain valve.
Our automatic container washing station cleans, rinses and dries one container every 15 minutes. Two access zones are used to separate the clean side from the dirty side.
The industrial IBC container is introduced in the washing cabin through the contaminated area, or even called “dirty side” and is stabilized inside by positioning guides. The access door automatically locks when it is closed. Once the storage IBC container cleaning process is finished, it is extracted through the clean area. In order to avoid the contamination of the both access areas, doors are inter-locked.
The PLC provides all data concerning the container washing process. The washing cycles are programmable and can be pre-defined according to the products formerly used.
A washing cycle runs as follows: pre-washing of the internal and external part of the container, washing with soap and water, rinsing with pure water, drying with forced hot air and cooling with filtered air.
Equipment advantages
- No retention area
- Soundproof cabinet
- Doors with tight seals and push locks
- Modular and automatic wash (configuration according to container size)
- Control panel with touchscreen
Media
View our equipment in videos
Station de lavage de conteneurs
Storage container washing station.
View our equipment in photos

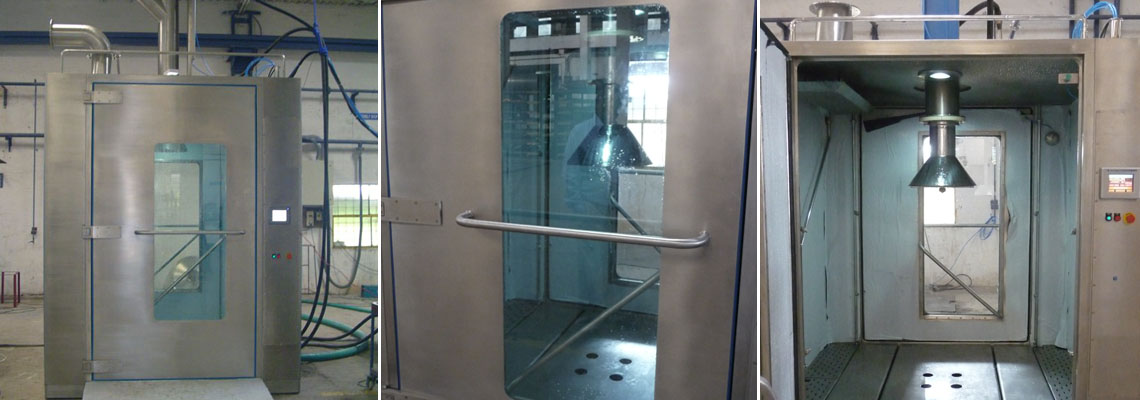

Storage container washing system
Container washing machine.
IBC washing station Palamatic Process
All equipment can be configured according to your requirements. The Palamatic Process design office is able to offer you very specific solutions.
Hygienic container washing station
Washing of all types of industrial containers.
Washing station for storage container
Easy design and use.
Washing nozzles for storage container washing
The free rotating washing nozzle guarantees uniform cleaning of the entire interior of your container to ensure hygiene and safety for your process.
Its slow and constant rotation increases cleaning power and the low flow rate required reduces fluid consumption and the efficiency of its water blades reduces washing time.
Station de nettoyage conteneur stockage
The container washing station is ideal for washing containers. Designed according to your container, it allows the cleaning of all types of containers (steel, stainless steel, plastic).
Its simple design makes it easy to set up and use for operators.
Features
Technical specification
| Standard features | Options |
|---|---|
| Main washing nozzles located on the vertical axis, in the center of the container |
Conveyor loading and unloading |
| Strategically positioning of spray nozzles to reach all external surfaces | Independent input and output doors (clean vs dirty area) |
| Horizontal opening of the door | Sliding automatic doors |
| Secure door lock | Stainless steel manufacturing |
| Independent washing cycle of containers | Control of the temperature of washing and rinsing water |
| Detergent injection | Control system of the drying air temperature |
| Purified water rinsing | Draining and cooling system |
| Temperature controlled air-drying system | Purge of the pipes with filtered air |
| HEPA air-filtered system | Remote control panel |
| Electrical control cabinet |
