Industrial mixer with removable shaft ECD

Description

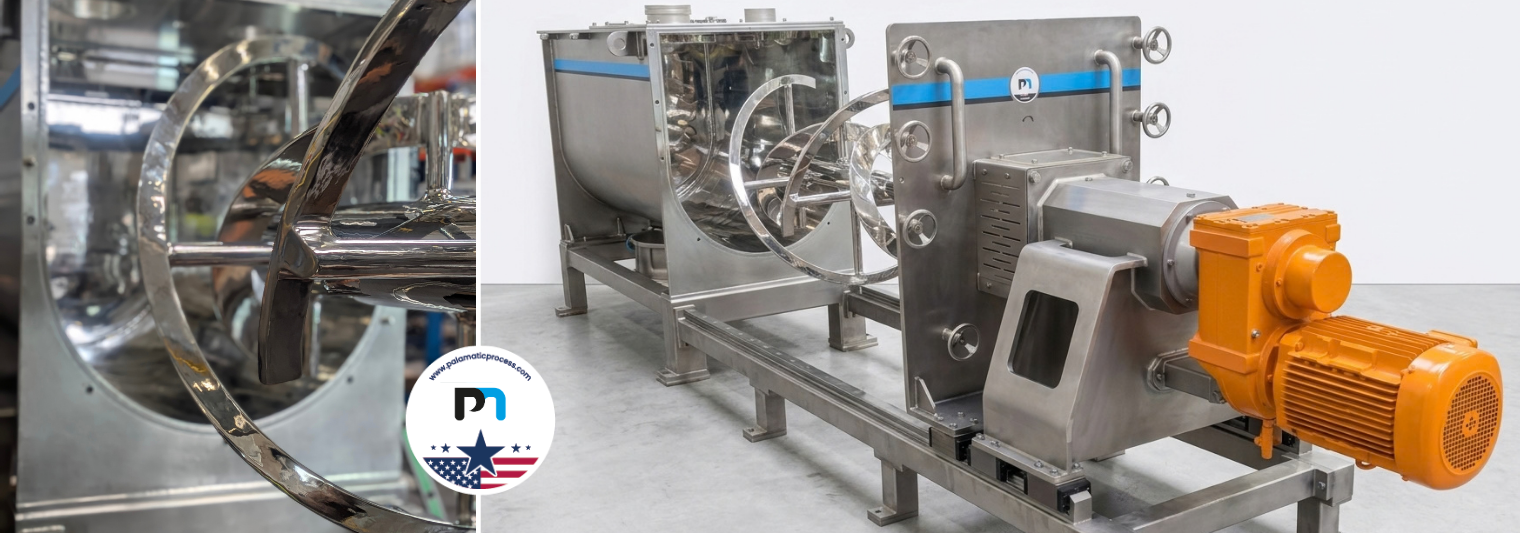

Mixer with removable shaft - ECD

Easy Clean Design - Industrial Mixer

The horizontal mixer - HTM100 Easy Clean Design with removable shaft provides efficient mixing with easy and fast cleaning design features.

The ECD mixer facilitates the production of blending various product types such as: spice blends, dairy powders, pharmaceutical ingredients, etc. The stirring unit and the mixing speed ensure the integrity of the material is preserved and deterioration is limited to a minimum, even on friable products.

The unique design of the tank and agitator provide the dispersion of the materials introduced in micro quantities of 0.1%. The mirror-polished stainless steel design offers remarkable hygienic qualities.

During product changeover between batch runs, cleaning is facilitated by the guide rails which enable the operator to disassemble the HTM vertical mixer for quick access to the inner components. This quick and easy access to all mixing parts allows the horizontal mixer to be used in food, pharmaceutical, baby food and pet food industries.

Mixing times vary between 3 and 9 minutes, depending on the complexity of the blending formula.

The HTM 100 horizontal mixer, with a capacity of 100 litres, can be loaded to at least 10% volume while maintaining its mixing qualities.

The polished finish of the stainless steel is < 0.4µm internals and <0.8µm externals guaranteeing a very hygienic and high quality mixer.

Hygiene

5

Media

View our equipment in photos

Quick-Release ECD Palamatic Mixer

The HTM100 horizontal mixer allows the manufacture of various mixtures whatever the product inserted: food powder, infant powder, pharmaceutical powder, etc.
