Description
Conveyor solution for materials requiring flexible layout
The tubular chain conveyor or tubular cable conveyor operates at low speed.
This low speed guarantees transport without product damage, and makes it available in ATEX versions. It is particularly suitable for transferring fragile products.
The system is totally dust-tight and self-cleaning. Its design has virtually no dead space.

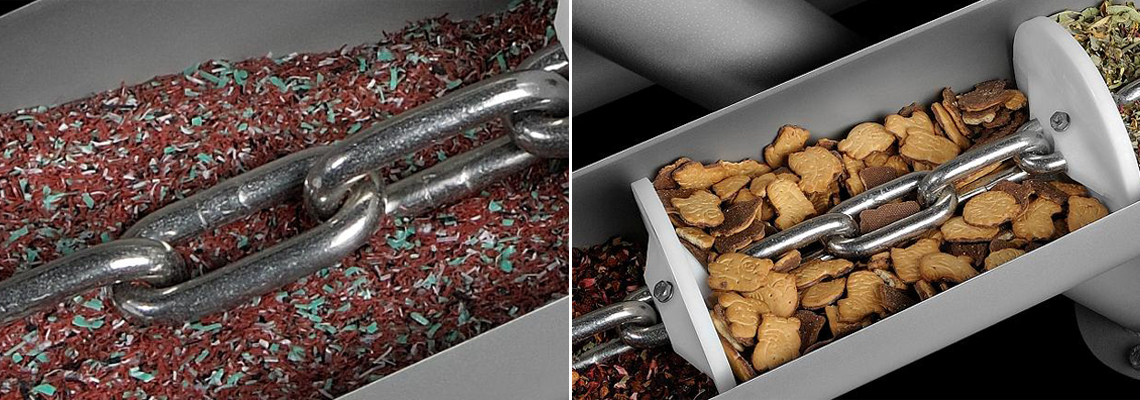

The discs, molded to FDA-approved food-grade quality, are mounted on the links of a stainless steel chain or steel cable that carries the product through the tube.
The chain acts as a seal as the product is transferred through the tube, enabling a conveyor to make multiple changes of direction.
There are 2 types of conveyor: the aeromechanical conveyor (aero-conveyor) and the tubular chain or cable conveyor.
Discover our white paper on the difference between a tubular conveyor and an aeroconveyor.
-
Rate4
-
Ease of implementation4
-
Hygiene4
Equipment advantages
Tubular chain conveyor
- Multiple inlets and outlets
- Conveyor can be stopped when full
- Easy maintenance & handling
- Operational safety
- Small footprint
- Low energy consumption and operating costs
Media
View our equipment in photos
![Mechanical transfer of food products](/sites/default/files/styles/tour/public/image/convoyeur-aeromecanique-grains-min.jpg)
Bulk transfer in the food industry
The food-grade molded discs are FDA-approved.
![aeromechanical conveyor bulk handling](/sites/default/files/styles/tour/public/aeromechanical-conveyor-bulk-handling-1.png)
Mechanical transfer
Catalyst sampling plant.
![Mechanical disc transfer of friable products](/sites/default/files/styles/tour/public/image/convoyeur-aeromecanique-disques-min.jpg)
Mechanical transfer of friable products
The chain conveyor transports fragile, brittle products gently, without damaging them.
![aeromechanical conveyor bulk handling](/sites/default/files/styles/tour/public/aeromechanical-conveyor-bulk-handling.png)
Aeromechanical conveyor
Conveying bulk products requiring flexible layout.
![Aeromechanical conveyor in the recycling sector](/sites/default/files/styles/tour/public/image/convoyeur-aeromecanique_2.jpg)
Waste conveyor
Tubular chain conveyors are used in the recycling industry.
![Aero-conveyor bulk handling Palamatic Process](/sites/default/files/styles/tour/public/mechanical-conveying-aero-conveyor.png)
Tubular chain conveyor
Chain conveyor with self-cleaning disc system.
![belt conveyor bulk material](/sites/default/files/styles/tour/public/belt-conveyor-bulk-material-1.png)
Mechanical transfer
The aeromechanical conveyor is used to convey and dose bulk products such as plastic granules and powders, expanded polystyrene, dried vegetables, coffee, tobacco, sugar, flour, milk, cocoa, talc, pigments...
![Tubular cable conveyor](/sites/default/files/styles/tour/public/image/convoyeur-a-chaine.jpg)
Tubular conveyor
Conveyor for bulk goods.
![aeromechanical conveyor palamatic process](/sites/default/files/styles/tour/public/aeromechanical-conveyor-palamatic-process.png)
Aeromechanical transfer
Chain utilization depends on the power required and the length of the conveyor.
![Bulk material conveying with tube chain conveyor](/sites/default/files/styles/tour/public/image/convoyeur-aeromecanique-poudre-min_1.jpg)
Transfer in the metallurgical industry
Mechanical sand conveying.
Features
Technical specification
Chain conveyor
The chain conveyor has a sealed design.
The discs, made of synthetic material, are mounted at regular intervals along a chain or cable. Motorization and a drive wheel indexing the disks rotate the cable or chain.
These same discs ensure the system's self-cleaning.
- The use of chain depends on the power required and the length of the conveyor.
- Aeromechanics using cables enables the equipment to be used in the food industry.
Tubular chain conveyors or tubular cable conveyors
Disks are molded and manufactured in FDA-approved food-grade quality. They are mounted on the links of a food-grade stainless steel chain, for use in food and pharmaceutical applications in a sanitary environment.
It can be fed via multiple infeed points, and can discharge product at several outfeed points.
The tubular conveyor can be installed on a mobile structure, particularly during truck loading operations.
Its high efficiency also enables heavy, demanding products to be conveyed at high flow rates (50 t/h), making it suitable for all sectors of activity.
5 tube diameter sizes are available: 115, 135, 160, 200 and 270.
