Semi-automatic sack discharging - Ergotip®

  • Essai
  • Plan d'accès
    Description
    Bag dump station - Bulk and powder handling
    Logo test center Palamatic Process

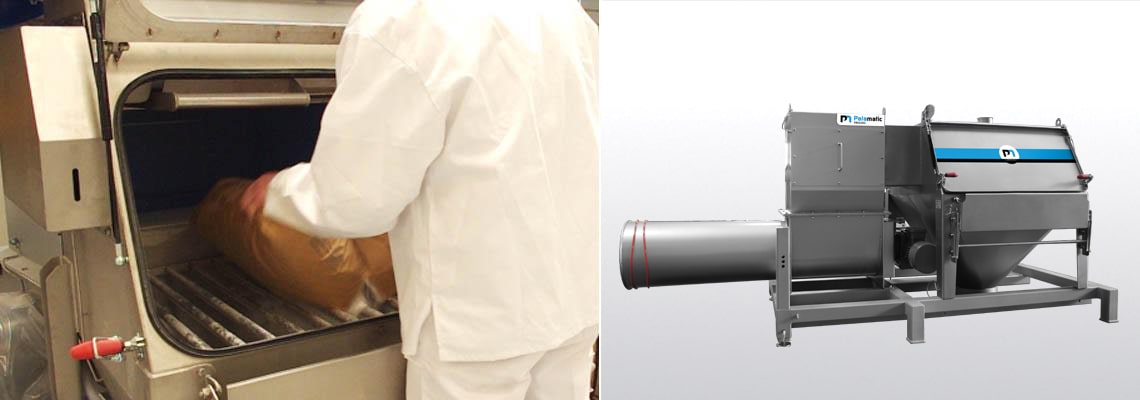

    SEMI-AUTOMATIC BAG DUMP STATION - ERGOTIP® - multi-bag unpacking

    Max rate: 4 to 6 bags/min.
    Mild or stainless-steel fabrication

    The ERGOTIP® semi-automatic sack tip tray systems has a cutting device to provide a higher rate of opening for bags of varying sizes.

    The ERGOTIP bag dump station with integrated bag opener is designed to unpack bulk materials with semi-automatic controls. The Ergotip® is suitable for all industries handling powders and dry bulk solids.

    The articulated blade cutting system provides a clean opening of all types of bags (paper, poly-woven, lined, etc).

    The two-handed control system ensures safe and efficient operation for this bag opening industrial equipment. Other features include an integrated bag compactor for waste disposal and built-in dust collection unit.


    Operating principle:

    1. The operator places the bag in the machine and closes the door

    2. The blade makes a slit on the bottom of the bag

    3. Product flows into the hopper

    4. Operator shakes the bag effortlessly and without heavy bag handling.



    Operating mode - cutting:

    operating mode automatic sack discharging

    The cutting system from the bottom of the bag prevents the operator from turning the bags over. Therefore a fast and safe bag opening operations is achieved.

    • Rate
      2
    • Overall dimensions
      5
    • Hygiene
      5
    Partager la page

    Equipment advantages

    - Suitable for a large number of types of bags: paper, polywoven, lined...

    - Minimizes handling by the operator

    - Reduction of dust emissions

    - Integrated bag compactor

    - Easy to clean

    View our equipment in videos

    Semi-automated bag dump station

    Ergotip® Semi-automated sack tip tray for unloading powders and bulk solids

    Integrated cutting device for all types of bags to provide a high bag opening rate operation.



    Ergotip® semi-automated solution for unloading powders and bulk solids

    The two-handed control system ensures safe and efficient operation for this bag opening industrial equipment. Other features include an integrated bag compactor for waste disposal and built-in dust collection unit.

    Sack discharging - Ergotip

    View our equipment in photos

    sack dumping ergotip powder processing

    Semi-automatic sack discharging

    The handling of the sack is easy and effortless.

    semi automatic sack discharging

    Sack discharging - Cutting system

    The blade makes a slit on the bottom of the bag.

    powder processing automatic sack opening

    Bag compactor

    The Ergotip® bag opener is used in all sectors. The articulated blade cutting system ensures a clean cut of all types of bags.

    semi automatic sack discharging

    Semi-automatic bag dump station

    The blade makes a slit on the bottom of the bag.

    semi automatic sack discharging

    Bag dump station with compactor

    Once the bag is discharged, it is placed in the bag compactor to maintain a healthy atmosphere.

    semi automatic sack discharging

    Semi-automatic sack discharging

    Pneumatic cutting cylinder with accumulator for optimal cutting.

    automatic sack opening bulk materials

    Bag tracking

    Batch monitoring for process safety.

    bag dump station compactor dust collector

    Sack manual discharging

    Effortless bag cutting without heavy bag handling. The operator does not need to return the bag.

    powder treatment

    Semi-automatic bag emptying Ergotip

    The Ergotip® bag opener can open all types of bags.

    powder treatment palamatic process

    Semi-automatic sack discharging Ergotip

    Semi-automatic multibag discharging - bulk materials handling.

    sack dumping ergotip

    Sack dumping

    Specific design with articulated screen for position magnetic detection.

    sack dumping ergotip food application

    Sack dumping food application

    This bag dump station integrates a cleaning system in place (CIP).

    semi automatic sack discharging

    Semi-automatic sack discharging

    In order to proceed to the semi-automatic opening, the operator validates the cutting cycle by means of a bimanual control.

    Ergotip automatic

    Ergotip® semi-automatic bag dump station

    Bag opening unit designed to meet the requirements of any industry handling dry materials.


    Vacuum bags Palamatic Process

    The Ergotip by Palamatic Process

    Semi-automated unpacking of bags filled with dry bulk solids to achieve higher feed rates.



    Technical specification

    Rate 4-6 sacks/min.
    Flow rate 15 to 50 kg/sack
    Manufacturing materials Painted steel, 316L stainless steel
    Compressed air consumption 7.5 SCFM
    Dust removal rate 471 SCFM

    The entire mechanics are placed outside to avoid contact with the bulk material (bulk, powder, powders, etc.).


    - Suitable for many types of bags: paper, polywoven, lined...

    - Minimizes handling by the operator

    - Increases productivity

    - Reduces dust emissions

    - Integrated bag compactor

    - Easy to clean

    • Ethanol production

      Processed powders: fluorinated derivatives: ammonium bifluoride, sodium fluoride, potassium fluoride, magnesia - Ethanol production - This customer is a specialist in the processing of oilseeds for...
    • Yogurt and cheese production line

      Processed products: milk powder - Yoghurt and cheese production line - The function of the equipment is to add milk powder mechanically in tanks.
    • Processing of artificial sweeteners

      Processed product: erythritol - Bag emptying and crushing line - Production line for sauces, soups, drinks.
