Rotary airlock valve - Pellets and flakes

  • Essai
  • Plan d'accès
    Description
    Rotary valve for pellets and flakes - Bulk materials and powder handling

    Pellets and flakes rotary airlock valve - Dosing of wood chips



    ATEX certification Palamatic Process

    4 models
    3 rotating speeds
    Theoretical flow rates from 1.32 to 35.1 m³/h.


    Dosing of wood chips and pellets/flakes

    Rotary airlock valves for the controlled feeding and unloading of pellets/flakes or wood chips from silos, hoppers, pneumatic conveying systems, pocket filters or cyclones.

    The shape of the blades and cross blades of the HARDOX steel rotor allows the cutting of the chips.

    Partager la page

    Equipment advantages

    - Rotors fitted with blades

    - Robust and compact design

    - Direct motorization

    View our equipment in photos

    screw feeder rotary valve starch pellets flakes

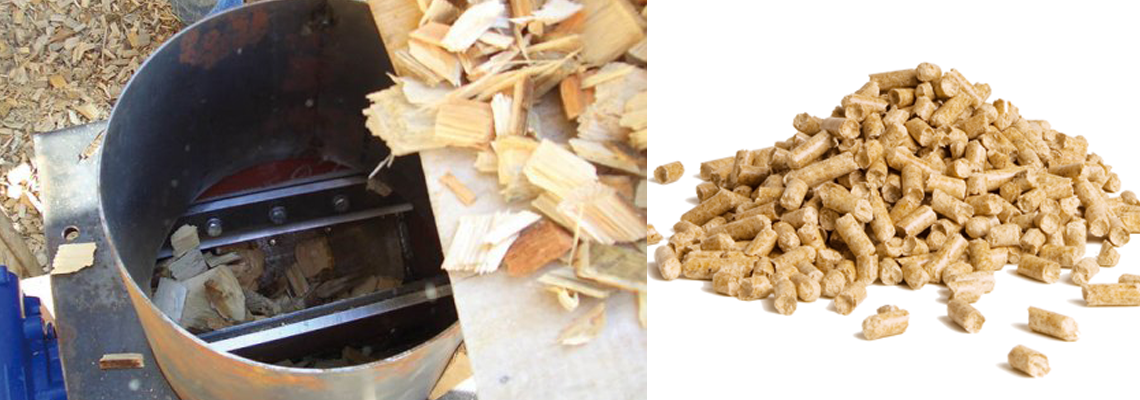

    Rotor with blades

    The blades are fitted with blades to ensure controlled unloading of pellets and chips.

    volumetric screw feeder bulk pellets

    Wooden chips dosing system

    For controlled unloading of pellets from silos, hoppers...

    screw feeder rotary valve dextrose alumina

    Motoreductor

    Dosing of wood chips and pellets.

    Technical specification

    4 model:

    • 3 rotating speeds
    • Theoretical flow rates from 1.32 to 35.1 m³/h.

    Flow rate schedule (given as an indication for 100% filling):

    Models 150² 200² 250² 300²
    Rotation speed rev./min. 10 20 30 10 20 30 10 20 30 10 20 30
    Theoretical flow rates m³/h. 1.32 2.64 3.96 3.24 6.48 9.72 6.54 13.08 29.62 11.7 23.4 35.1



    Download the booklet
