Vacuum pneumatic conveying systems - Powder pumps:
Transporting the product without damage - Suitable for difficult products
Flow rate from 5 to 10,000 ltr/hr
Steel, 304L and 316L stainless steel construction
Our VFLOW® range
Dense phase vacuum pneumatic transfer allows the product to be transported without damaging it, in a continuous and confined manner. Particularly adapted to difficult products, the presence of the pneumatic vibrator allows a better flow of your powders or your bulk products. This suction cyclone can be easily installed in your environment and can be extended.
The pneumatic transport of your powders is done from several feeding points.

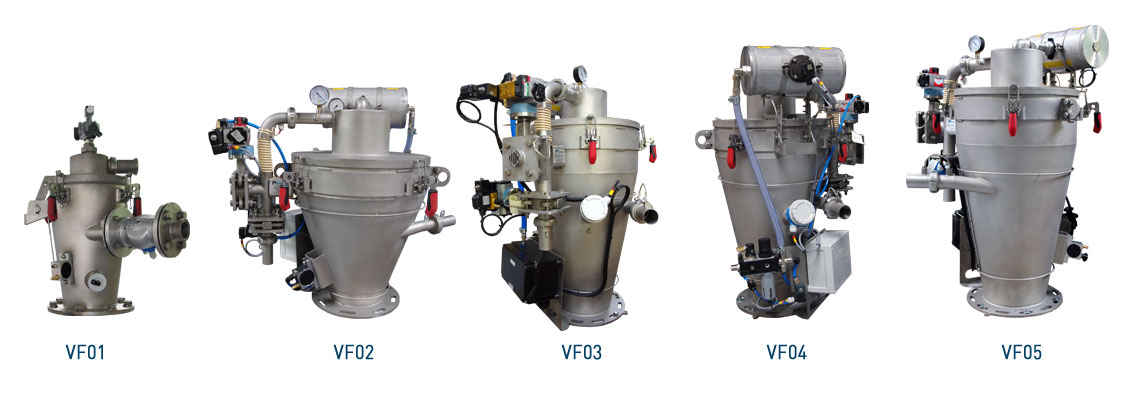

A range of five suction cyclones for pneumatic transfer of powders and granules without damage. Coupled with weighing systems, they allow the weight-controlled introduction of raw materials into your manufacturing process
Gentle material transfer for friable and abrasive products
Palamatic Process offers, within the VFlow® product line, five models of vacuum conveying cyclones for dense phase pneumatic transfer. Our dense phase line is suited for abrasive materials to prevent damage to conveying lines as well as preventing attrition for friable powders and granules (sugar, salt, sodium bicarb, etc.). When integrated with weighing systems, these systems can be used with metering equipment (feeders, airlock rotary valves, etc.) for a controlled introduction of raw materials into your manufacturing process.
The new generation of powder pumps, developed by the Palamatic Process design office, provides gentle dense phase vacuum conveying which prevents material degradation and the creation of additional dust within your powder handling production processes. Particularly suited for difficult materials (poor flow, friability, abrasiveness or explosive), this cyclone is easily installed in your process with extension options to suit your production requirements. Some options include hygienic vacuum conveying equipment, clean in place conveying, and line purge vacuum systems. The conveying system can be designed with multiple feed points and/or destinations in your process. Systems can also be designed to provide material feed into a pressurized reactor vessel without an additional air supply.
3 main functions:
1. Vacuum conveying
2. Dosing of the conveyed product
3. Weighing/Metering
-
Rate3
-
Fragile material5
-
Abrasive material4
Integrated equipment:
- Body
- Hinged Cover
- DN65 Inlet material valve
- DN250 Outlet material valve
- Unclogging tank
- Unclogging nozzle
- DN65 valve for venting
- DN65 vacuum valve
- High level probe
- Spring clips for cover
- Vacuum hose
- Pneumatic equipment plate
- Pneumatic vibrator
Customized vacuum conveying
Conveying systems designed to fit almost any process application
The Palamatic Process engineering office designs customized pneumatic conveying equipment in collaboration with our customers based on the specifications and requirements of their industrial process.
Our design and engineering office can offer specific solutions for your pneumatic conveying applications based on our 25+ years of technical experience and the specific requirements of your manufacturing needs. After visiting your facility, Palamatic and you, our customer, define solution according to your powder handling specifications.
Equipment advantages
- Flexibility of the system
- Line purge
- Clean In Place
- Hygienic design
- Loading of reactors under pressure
- Easy implementation
- All materials, all flows
- No material degradation
Media
View our equipment in videos
Pneumatic vacuum conveying systems - Powders Pumps - PALAMATIC PROCESS
Range of vacuum pneumatic conveying systems
Range VFlow® Palamatic Process
Pressure phase pneumatic conveying loading line with integrated dosing
Mobil unit - Suction tube for drum and sack discharging
Mobile station for discharging bags with suction pipe.
Dense phase pneumatic conveying
Transfert pneumatique - Cyclone d'aspiration - Palamatic Process
View our equipment in photos
VFlow® pneumatic transfer
Powder transfer via a Palamatic powder pump.
VFlow® pneumatic powder transfer
Pneumatic powder transfer system for conveying your material on your production line.
VFlow® Palamatic Process
Pneumatic conveying solution
Pneumatic conveying solution
Pneumatic conveying for bulk materials
Granules, metallic powders or fats, the VFlow® range ensures the pneumatic conveying of 95% of existing powdery materials.
Pneumatic conveyor for bulk powder
Pneumatic conveying system integrated on a big bag filling station.
Vacuum pneumatic conveying
Vacuumed dense phase conveying system for the transfer of roasted peanuts.
Pneumatic conveying calcium carbonate
Continuous bulk materials conveying for the production of cosmetic materials.
Bulk materials conveying
The custom-made VFlow® allows a dense vacuum conveying in a continuous and contained way in your manufacturing processes and avoids the deterioration of the bulk solids.
Vacuum pneumatic conveying system for powder process palamatic
Conveying of coating gelatin for capsules.
Industrial powder handling
At the starting point, the powder is vacuumed from its initial package and stored in a drying tank. The operation is carried out via a dense phase vacuumed pneumatic conveying system VFlow® 01.
Pneumatic conveying chemistry process
The objective of the installation is to discharge raw materials while working in a healthy atmosphere without pollution and without loss of bulk materials.
Dense phase vacuum conveying
Pneumatic conveying provides a multiple function, thus minimizing the number of equipment installed.
Cyclone range
The bulk material is vacuumed by means of a vacuum pump to an inlet cyclone (cyclo-filter).
Mobile station - Pneumatic conveying system
Mobile dosing skid for seed transport.
Pneumatic conveying - Mobile station - Suction pipe
Mobile dosing skid for seed transport.
Pneumatic conveying for powder
Skid for powdering salt and sugar by controlled feeding of a dissolution tank and powder wetting device for feeding a drying tower
Skid for dosing and pneumatic conveying
Mobile dosing skid for seed handling and conveying.
Dense phase pneumatic conveyor
Pneumatic conveying for industrial powders and bulk materials.
Vacuum pneumatic conveying bulk materials handling
Vacuum pneumatic conveying for industrial production lines involving raw ingredients and bulk materials handling.
Dense phase vacuum pneumatic conveying
Pneumatic conveying of powders or bulk materials.
Container discharging with pneumatic conveying system
Integrated equipment :
- Dense phase vacuum conveying system - Detached filter
- Dense phase vacuum conveying system VFlow® 05
- Steel/Stainless steel container
- Container discharging - IbcFlow®01
Pneumatic conveying VFlow®05
Grinding unit for the production of icing sugar and incorporation of starch-type anti-foaming agents.
Pneumatic conveyor
Suction is made from several feeding points. Coupled with weighing systems, it can be used for the controlled introduction of raw materials by weight.
Dense phase pneumatic conveyor
Processed bulk materials: cocoa, hazelnut powder, vanilla powder.
Pneumatic conveying on silo
Complete installation for the assembly and commissioning of a set of big bag or sack unloading equipment, of various powders or bulk materials, which, by pneumatic transport, are directed towards a hopper, allowing the loading of a reactor.
Liquid formulation line conveying cyclone
2 conveying cyclones feed a reactor: the dosing accuracy must be ensured using the weighing system equipping these cyclones and the reactor weighing system.
Vacuum pneumatic conveyor
Pneumatic conveying for bulk handling equipment and powder processing.
Liquid formulation line conveying
This application concerns 2 pneumatic conveying lines feeding 2 reactors from industrial storage containers.
Pneumatic conveying cyclone
Dense phase vacuumed pneumatic conveying VFlow®.
Vacuum conveying for reactor filling
Dense phase vacuumed pneumatic conveying with an integrated weighing system. The integrated weighing system enables you to check in masked time and prepare the batch to be loaded.
Vacuum pneumatic conveying dense phase
Multi-point dosing for discharging, continuous conveying without product loss.
Pneumatic conveying for reactor feeding
Reactor feed airlock for nitrogen gassing.
Conditioning line on pneumatic conveyingg
Integrated equipment:
- Vacuum pneumatic conveying dense phase VFlow® 03
- Ploughshare & blade mixer
- Vibratory screener on pneumatic conveying line
- Big bag filling system - FlowMatic® 02
Ploughshare and blade mixer with pneumatic conveying system
The weighing cyclone is implemented in the attic to free up the production space that is covered in the clean zone.
Ploughshare and blade mixer with pneumatic conveying system
Conveying cyclone with a dosing system.
Vacuum pneumatic conveying on packaging line
Skid with vacuum pneumatic conveying, discontinuous paddle mixer and drum filling system.
Pneumatic conveying on bag dump station
Food factory manufacturing yogurt. Sugar and protein transfer in a VFlow® 04 pneumatic conveying system.
Preparation tank feeding
Powder feeding of preparation tanks from big bags and sacks.
Tank feeding - Chemical materials
The process consists of a big bag feeding system (gravity conveyor), three bulk bag discharging stations.
Cyclofilter separator
Supply of the weighed dissolution tank by cyclone separator. The sugar is introduced continuously using a rotary airlock valve.
A cyclofilter is installed on the ground to capture the fines and reintroduce them directly into the conveying piping.
Pneumatic conveyor
Integrated equipment :
- Pneumatic conveying VFlow® 02
- Tubular conveying screw
- Manual slide valve
- Flexible fitting
Vacuum pneumatic conveying dense phase VFlow® 02
Pneumatic conveying of kaolin for feeding two atomization towers.
Vacuum pneumatic conveying dense phase VF02
Main objectives:
- Optimize the flow of the bulk material
- Degassing of the conveying air passing through the airlock gate valve.
Dosing pneumatic line
Installation of a vacuumed pneumatic conveying system for feeding a conical industrial mixer.
Vacuum pneumatic conveying dense phase
Ready-made meal preparation plant: processing of wheat flour and rice flour.
Pneumatic conveyor for mixing feeder
The mixer is fed with the ingredients: cane sugar, cocoa powder, corn starch, cinnamon powder and hazelnut powder.
Pneumatic sugar conveying
Feeding of a filling machine by dense phase pneumatic conveying for brown sugar, cane sugar, white sugar.
Bag dump station with pneumatic conveying system
Food additive dosing line with cleaning in place of all equipment.
Vacuum pneumatic conveying dense phase
Conveying of coating gelatin for capsules.
Features
Technical specification
| Models | VF01 | VF02 | VF03 | VF04 | VF05 |
|---|---|---|---|---|---|
| Overall dimensions in mm | 660 | 820 | 1,070 | 1,070 | 1,100 |
| Flow rate in t./h. | 0 to 1 | 1 to 2.5 | 2.5 to 4 | 4 to 6 | 5 to 8 |
| Ø Piping | 38 | 51 | 63.5 | 76 | 104 |
| Ø Product outlet | 200 | 200 | 250 | 300 | 300 |
Palamatic Process offers the vacuum transport system V-Flow® running on a dense phase principle.
The bulk material is vacuumed through a vacuum pump (electric or pneumatic) to a arrival cyclone (cyclo-filter) with tangential arrival (cylindrical).
The product is vacuum through a pneumatic conveyor gearbox installed at the point of withdrawal (no rotary valve) until the vacuum cyclone that is equipped with filters of small sizes to separate the air from the product. The vacuum cyclone is equipped with a butterfly valve (or other if the process requires) and a level probe allowing the emptying at regular intervals.
The rates obtained by this type of powder pumps are between 5 and 10,000 litres per hour with low energy consumption and extremely simple maintenance.
The other advantage of this powder system is the ease of the implementation of the weight control.
The vacuum cyclone may be located on loading cells allowing the vacuum and feeding of the conveyed product.
For incorporation of powder into liquids (powder skid), the powder pump solutions are often used because of their advantages:
- Weighing of the bulk material
- Simple system
- Easy cleaning
- Simple piping that can be modified in the future
The pneumatic conveyor gearbox can also be replaced with a vacuum pipe handled by the operator.
This type of pump for powder is generally associated with weighing. Indeed, the hopper of departure may be located on load cells and a purge valve is shutting off product flow ensuring management of the fall.
On the contrary, the cyclone of reception can be implemented on load cells in order to extract from different points the right amount of product needed in the preparation of the premix.
All these vacuum conveying systems can be mounted directly under sacks unloading stations, big bags unloading units, containers, silos ...
Options
Available options
-
Vibrator
Vibrating bin aerators:The vibrator facilitates the debridging and ensures fluidization of the product and ad well as a slight vibration.
-
Switch
It ensures the supply of several cyclones from one loading point, without retention of product in the pipeline.
The switches are available in diameters ranging from 51 to 250 mm.
The switches design incorporates inflating gaskets that ensures the sealing of the line without risk of leakage. -
ATEX
Implementation of your equipment in hazardous areas.
-
Vertical conception
To optimize the unloading of the cyclone when handling difficult products.
-
Deported filter
The pneumatic transfer solution with deported filter provides the following benefits:
- The transfer of difficult products: the filter is protected and clogging is reduced
- Optimizes the achievement of high flows (reduced losses)
- Can also be used for separation of fines
- Filter protection from any steam ascents when loading reactors
- Integration of the fines in the process (no loss of product)
-
C.I.P
This option allows complete decontamination and cleaning of the system without human intervention.
It consists of a liquid separator and allows the in-line cleaning of the installation without disassembly. The cleaning water or the solvent circulates as the powder in the entire pipe and the cyclone, without retention zone. This option incorporates a specific drying device. Steering is provided by the standardcontrol panel of the installation. -
Line drain system
It cleans the entire product passage piping after transfer and optimizes the drain of the piping at the end of loading. It is particularly used to avoid cross-contamination.
-
Anti humid ascent tank
It allows the chage of reaction under pressure.
-
Level sensor
The level probe detects the presence of the product at high level and stops feeding product by controlling the vacuum valve.
As this is an optional item, you may wish to control the product filling via a timer fitted in main control panel. -
Pneumatic vibrators
To optimize the flow of the product, we offer the establishment of a pneumatic vibrator located in the lower part of the cyclone on a dedicated mounting plate.
-
Weight cells
It enables to control the quantity of powder introduced when loading or discharging.
Case studies
CASE STUDIES WITH THIS EQUIPMENT
Infant milk powder line
Processed bulk solids: milk powder - Infant milk powder line - This subsidiary company from one of the first milk group in the world, devellops a wide range of functionals and nutritionals milk...Food and Animal Feed
-
Manufacture of coated peanuts
Processed bulk solids: roasted/caramelized peanuts - Manufacture of coated peanuts - This factory develops and markets chocolate based products.Food and Animal Feed
-
Loading of kneaders
Processed powders: salt, flour, milk powder, sugar, ascorbic acid - Loading of kneaders - Worldwide company specialized in industrial bakery.Food and Animal Feed
-
Handling of food starch
Processed powders: gluten and starch - Handling of food starch - French company specialized in the conditioning of bulk products and raw materials.Food and Animal Feed
-
Kibbles manufacturing
Powders processed: palatability enhancers, flavours for dog and cat food - Kibbles manufacturing - Company SPF. To cope with its development, the French company SPF, the "petfood" branch of the...Food and Animal Feed
-
Powdered egg production
Processed powders: salt and sugar - Powdered egg production - This customer is a specialist in egg processing for industrial customers. This manufacturing process requires an aqueous solution that...Food and Animal Feed
-
Manufacture of food flavours
Processed powder: maltodextrin with a bulk density of 500 kg/m³ - Manufacturing of food flavours - Company specialized in mushroom extraction - Maltodextrin is packed in 20 and 25 kg bags. The...Food and Animal Feed
-
Preparation of milky drink
Processed powders: milk powder and sugar - Preparation of milk drinks - Agribusiness group in the Island of Reunion, this company is a leader in most markets in which it operates: fresh dairy products...Food and Animal Feed
-
Icing sugar line
Processed powder: starch and granulated sugar - Icing sugar line - French sugar cooperative company - Supply and commissioning of a set of machines for the production of icing sugar and starch to feed...Food and Animal Feed
-
Ethanol production
Processed powders: fluorinated derivatives: ammonium bifluoride, sodium fluoride, potassium fluoride, magnesia - Ethanol production - This customer is a specialist in the processing of oilseeds for...Chemical
-
Liquor manufacturing
Processed powders: beet crystal sugar and cane sugar - Liquor manufacturing - French company specialized in the manufacture of spirits and syrups. The syrups are intended for CHR professionals and...Food and Animal Feed
-
Skid for metallic powder
Processed powders: metallic powder (bulk density 5) - Skid for metallic powder - The powder is vacuumed from its initial packaging and stored in a drying tank.Chemical
-
Rubber calendering line
Processed powders: 2 references of carbon black (micro pearl) - Rubber calendering line - The facility includes 2 container discharge systems that supply 2 mixing lines with powdered carbon black.Chemical
-
Blowing agent for PVC flooring
Powder processed: azobul - Blowing agent for PVC flooring - Continuous dosing supply of a PVC powder mixing reactor. The industrial metering system is fed by a vacuum pneumatic conveying system...Chemical
-
Masterbatch and additives
Processed powders: cobalt, calcium carbonate CaCo3, titanium dioxide TIO2 - Masterbatch and additives - Discharge of raw materials while maintaining a healthy atmosphere without pollution and without...Chemical
-
Compounding line
Processed products: plastic granules - Compounding line - Installation of a big bag and Flowbin emptying station containing powdery or granulated powders in a buffer hopper.Chemical
-
Manufacture of industrial glue
Processed powders: varnish and gelcoat - Manufacture of industrial glue - This process consists of a combined Duopal® DP02 station for emptying sacks and big bags, a pneumatic conveying system and a...Chemical
-
Hair cream manufacturing
Processed powders: potassium persulphate and sodium persulphate - Hair cream manufacturing - A major French industrial group manufacturing cosmetics products wanted to install a new production line in...Fine chemical
-
Gelatin for capsules
Processed materials: pork gelatin, fish gelatin, bovine gelatin, for capsules coating gelatin for capsules - Gelatin for capsules - This company acting in the pharmaceutical sector is one of the world...Fine chemical
-
Drinking water filtration
Powder processed: activated carbon and lime (with a respective bulk density of 0.5 ton/m³ and 0.6 ton/m³) - Drinking water filtration - The customer requires a pneumatic conveying system, at a rate of...Water and smoke
-
Instant chocolate powder
Powder processed: chocolate powder - Instant chocolate powder - This company in the agri-food sector produces chocolates, sweets, condiments, seasonings, sugars...Food and Animal Feed
-
Resin and gel coat manufacturing
Processed powders: maleic anhydride, Epo Kukdo - Resin and gel coat manufacturing - The customer is one of the world leaders in the production of structural resins for the building, automotive, water...Chemical
-
Dosing in a cutter mincer mixer
Processed powder: starch - Dosing in a cutter mincer mixer - The process is designed to feed a shredder in a controlled way. It consists of an EasyFlow® EF big bag deconditioning system, a VFlow®...Food and Animal Feed
-
Cake mix
Processed powders: modified starch, sodium bicarbonate, fat powder, whipping base, gelatin, milled sugar - Cake mix - Company based in Saudi Arabia that manufactures and distributes dry food materials...Food and Animal Feed
-
Animal nutrition food supplements
Processed powders: silica, clay, calcium carbonate, lithothamnium - Animal nutrition food supplements - This customer is a producer of specific mixtures of botanical extracts. In order to ensure its...Food and Animal Feed
-
Cementation of nuclear waste
Processed powders: Cement + filler, lime and calcium nitrate - Cementation of nuclear waste - This process is intended for the cementation of fines and resinsEnergy
-
Deconditioning of food powders
Processed powders: wheat starch, potato starch, salt, egg white and sugar - Deconditioning of food powders - The customer is a Breton cannery specialized in the manufacture of surimi.Food and Animal Feed
-
Raw material dosing
Processed powders: milk powder, salt, sugar and additives - Raw material dosing - This project concerns the deconditioning of raw materials in big bags for the feeding of 2 Viennese pastry production...Food and Animal Feed
-
Powder incorporator feeding system (powder/liquid mixer)
Processed powder: Mallow powder with a bulk density of 0.5 kg/m³. - Powder incorporator feeding system (powder/liquid mixer) - The purpose of the installation is the vacuuming of mallow powder for...Fine chemical
-
Manufacturing of engine additives
Treated powder: diatomaceous earth - Manufacture of engine additives - Safe incorporation of powders with nitrogen inerting sluice in a sensitive environment, ATEX gas zone, zero retention.Chemical
-
Conveying and grinding line
Processed powder: specific milk powder - Pneumatic conveying and grinding line - This company was looking to reduce the granulometry of its final product with a homogeneous particle size spectrum.Food and Animal Feed
-
Recycling of milk powder by micronization
Processed powder: dairy product flakes, density 400 to 500 µm - Recycling of milk powder by micronization - The installation consists of the dosing, transfer, grinding and reconditioning of the milled...Food and Animal Feed
-
Pharmaceutical powder discharging process
Processed material: sodium bicarbonate - Powder processes in pharmaceutical laboratories - Deconditioning of raw materials (sodium bicarbonate for pharmaceutical application) from big bags.Fine chemical
-
Manufacture of glass wool
Material handled: sodium nitrate beads - Manufacture of glass wool - The client, a world leader in insulation solutions, required installation of a pneumatic conveying system for the transfer of...Chemical
-
Tank feeding
Processed powders: Cobalt Carbonate, Cobalt Hydroxide & Cobalt Oxalate - Tank feeding - The purpose of the installation is to feed a preparation tank with the product packaged in big bags.Energy
-
Shampoo production line
Processed material: wax, parafin - Shampoo manufacturing - Automated loading of tanks (melters) for the preparation of shampoo.Fine chemical
-
Dosages of Dry Mix products
Processed powders: whey, sugar, flavorings - Dry products dosing for dry mixing - Preparation line for the manufacture of ice cream with unitary dosage of different ingredients according to the recipe...Food and Animal Feed
-
Sugar grinding unit
Processed powders: icing sugar from white granulated sugar and starch - Sugar milling unit - The installation consists of feeding the mill with granulated sugar and then packaging the resulting icing...Food and Animal Feed
-
Insect breeding unit
Processed products: bran, meal, droppings, live insects, dead insects - Insect breeding unit - This workshop is the heart of the insect breeding process.Food and Animal Feed
-
Entomoculture treatment unit
Treated products: droppings, dead insects, live insects - Treatment unit in the entomoculture - This unit allows the treatment of non-compliant products from the main process.Food and Animal Feed
-
Grinding and packaging of finished products
Processed products: dried insects - Grinding and packaging of finished products - Workshop for processing and packaging products for the animal nutrition sector.Food and Animal Feed
-
Spray tower for packaging feed
Processed powders: skim milk powder / whole milk powder. Client in Africa.Food and Animal Feed
-
Weighing, conveying, dosing and transfer
Products processed: snack cakes (starch, rice flour, oats) - Weighing, conveying, dosing and transfer - Extraction from big bags and sacks to feed a kneading tank.Food and Animal Feed
-
Production of dried fruits and seeds
Processed powder: dried fruits and seeds - Mixing and packaging - Our customer wanted to implement a new production line in its plant to support its growth.Food and Animal Feed
-
Loading catalysts
Processed product: alumina balls - Loading catalysts - The client’s objective is loading two 25 meter high gas treatment towers with catalysts.Water and smoke
-
Confined deconditioning, dosing and transfer of powders
Processed powders: Minerals and additives (such as titanium dioxide) for the manufacture of paints - Emptying of big bags into mobile IBCs with dosing and transfer of the product to a mixer downstream...Chemical
-
Manufacturing process for sealants
Processed powder : Sodium hypophosphite - Manufacture and installation of a new turnkey process line for the production of coatings and sealants in an ATEX hazardous location.Chemical
-
Black mass treatment process
Treated powder: black mass - Black mass treatment process - Process to unload the black mass from big bags, precisely dose and repulp it with water, without clogging reactions or dust emissions from...Energy
-
Process for the production of chocolate
Process materials: granulated Sugar, whey, skim milk powder, and various other minor additives - Process for the production of chocolate - Objectives: unloading, transfer, storage and dosing of...Food and Animal Feed
-
Cardboard box confined packaging station
Cardboard box confined packaging station - Powder dosing line at dryer outlet for cardboard box packaging feed.Energy
