    Big bag discharger - Bulk and powder handling

    HIGH-SPEED BULK BAG UNLOADING STATION - AUTOMATIC DECONDITIONING WITHOUT OPERATOR INTERVENTION

    With a throughput of 20 to 40 bulk bags per hour, this fully automated material unloading station carries out the cutting, handling and evacuation phases of bulk bags independently.

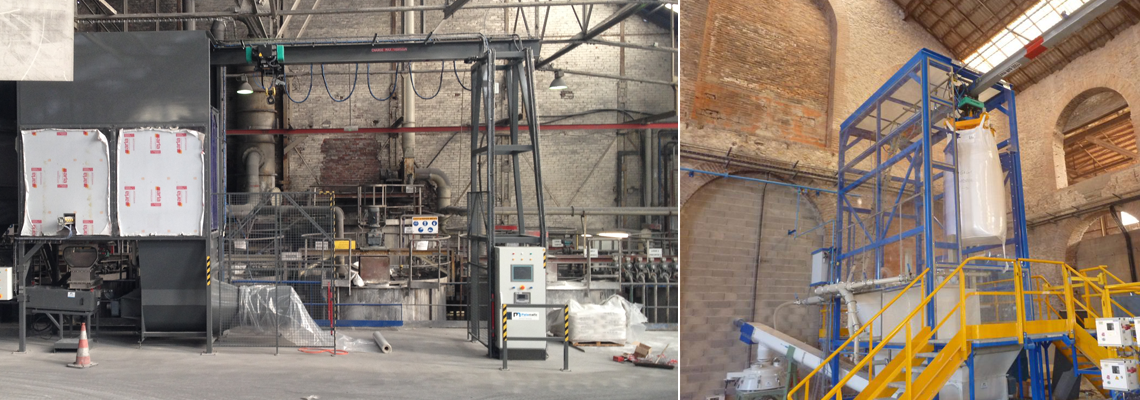

    Implementation examples:



    Big bag discharger high rate - Bulk and powder handling
    Big bag discharger high rate - Bulk and powder handling


    Features:


    Rate: 20 to 40 bulk bags / h.
    Capacity: 2 tons / bulk bag

    Objectives: Automatic opening, dust containment, increased production & work place safety


    The PALAMATIC PROCESS high-speed bulk bag unloading station allows the automatic deconditioning of bulk bags without operator intervention. The cutting, handling and evacuation phases of the bulk bags are autonomous. The handling and evacuation is carried out by the attachment of the bulk bag on the handling cross.



    Big bag discharging drawing - Bulk and powder handling



    Operating sequence:
    1. Placement and attachment of the bulk bag (operator action)
    2. Transfer of the bulk bag inside the station (automatic hoist control)
    3. Cutting and emptying the bulk bag (automated)
    4. Massaging of the bulk bag ( according to option) and crumbling of the product
    5. Automatic bulk bag release
    6. Empty bulk bag feeds to FIBC waste compactor
    7. Automatic management of bulk bags to be unloaded and pallet stacker



    The PALAMATIC PROCESS design office also offers customized solutions.
    The high-speed super sack unloading station is also available with full dust containment and integrated bulk bag compactor capabilities.

    • Rate
      5
    • Automation
      4
    Partager la page

    Equipment advantages

    - Automatic cutting and bulk bag opening
    - Integrated bulk bag compactor
    - Improvement of bulk materials flow via FIBC massagers
    - Automatic loading and discharge

    View our equipment in videos

    Bulk bag discharging - High rate - Easyflow EF100 200

    With a throughput of 20 to 40 bulk bags per hour, this fully automated material unloading station carries out the cutting, handling and evacuation phases of bulk bags independently.

    View our equipment in photos

    high rate fibc unloader bulk materials handling

    Bulk bag discharging - High rate - Contaiment cage with compactor

    This bulk bag unloading system is used to automatically empty bulk bags without operator intervention.

    Big bag discharger - High rate

    Example of an automated bulk bag discharging system

    Two conveying lines with two pallet stackers for increased capacity.
    Examples of options: dedusting ring and granulator.

    high rate fibc unloader bulk materials handling

    Total containment of bulk bag unloading operations

    The cutting and opening of the bulk bag is automatic. The cutting system used is adapted according to the type of bulk bags being handled.

    high rate fibc unloader bulk materials handling

    Bulk bag unloading - Double electric hoist loading system

    The electric hoist is controlled automatically.

    high rate fibc unloader bulk materials handling

    Big bag discharging - Double electric hoist loading

    Bulk bag handling for industrial production lines involving raw ingredients and bulk materials handling.

    high rate fibc unloader bulk materials handling

    Diamond shaped bulk bag puncture tip

    The spike is used to burst the bottom of the bulk bag for automated unloading.

    high rate fibc unloader bulk materials handling

    Big bag compactor

    A big bag compactor is built-in to maintain a healthy working atmosphere.

    high rate fibc unloader bulk materials handling

    Bulk bag discharging high rate

    Discharge of big bag of anticorrosive pigments: automatic cutting, containment and safety.

    high rate fibc unloader bulk materials handling

    Jumbo bag discharging high rate

    Rate of 20 to 40 big bags per hour.

    high rate fibc unloader bulk materials handling

    3D view - Bulk bag discharging high rate

    We provide technical drawings.

    Technical specification

    Missed 20 to 40 bulk bag / h
    Manufacturing materials painted steel, 304L stainless steel, 316L stainless steel
    Finishing keys RAL 9006, micro-blasted, electropolishing
    Installed power 5 kw (depending on option)
    Operating pressure 6 bar
    Required dust removal rate 3,000 m³ / h
    Maximum dimensions of the big bags (length * width * height) 1,200 * 1,200 * 2,400 / other custom-made
    entrance 4-20 mA
    TOR input 6
    TOR outpout 4



    Available options

    • dedusting ring big bag discharge station
      dedusting ring big bag discharge station

      Dust collection ring

      It helps to minimize dust emissions. The dedusting ring is mounted on the tray. It consists of a split tubing and two connection connections for dust removal. A manually operated damper adjusts or closes the suction flow.

    • glove box big bag unlaoding station
      glove box big bag unlaoding station

      Glove box

      Handling of toxic products and contaminants.

      The gloves are installed on the door of the stripping box, mounted on PVC glove rings. Clamps provide containment and closure. A neon implanted outside through a plexiglass facilitates the opening operations of the big bag.

      The glove stripping box allows the user to handle the big bag without coming into contact with various potentially toxic bulk materials. In fact, the glove box will allow the user to undo the bun of the big bag to allow it to be discharged. A sieve is added in the stripping box to secure the process.

      Glove manufacturing material adapted to the requirements of your processed materials.

    • bag compactor on bag dump station palamatic process
      bag compactor on bag dump station palamatic process

      Big bags compactor

      It helps reduce the volume of waste and keep a healthy and dust free atmosphere.

      The big bag compactors collect and compress all types of big bags, while eliminating most of the dust by installing a connection to the sewerage system.

    • industrial bag dump station
      industrial bag dump station

      U-shaped spike

      This spike allows the opening of the big bag without direct action of the operator. It is particularly used when using big bags with a cuff (U-shaped tip).

      Once the big bag is placed on the emptying station, the operator lowers the big bag using a hoist to let it rest on the spike located on the dispensing tray. The force exerted by the 'material' weight on the knives will allow instant cutting of the bottom of the big bag.

      For big bags with blood-bottom, the V-shaped diamond spike allows the bottom of the big bag to be cut open.

    • industrial bag dump station
      industrial bag dump station

      V-shaped spike

      This spike allows the opening of the big bag without direct action of the operator. It is particularly used when using big bags with cuff (V-shaped tip).

      Once the big bag is placed on the big bag discharging station, the operator lowers the big bag using a hoist to let it rest on the spike located on the dispensing tray. The force exerted by the 'product' weight on the knives will allow instant cutting of the bottom of the big bag.

      For big bags with cuff, the tip U-shaped and allows to cut the big bag open at the height of his cuff.

    • big bag discharge station
      big bag discharge station

      Handling cross

      In order to get the big bag to be emptied optimally, an autonomous sidewall tensioning system is available as an option. This system avoids retention pockets and guarantees optimal emptying without product loss and without operator intervention.

    • lump breaker on big bag discharging station
      lump breaker on big bag discharging station

      Lump breaker

      Our lump breakers present the ideal solution for crushing materials that tend to make lumps.

      The device makes it possible to break the lumps that are created during the production or transport processes of the friable materials in powder or in grains. See the range of Palamatic Process lump breakers.



    • big bag discharging massage system
      big bag discharging massage system

      Big bag massage system

      Massage flow aid system: the cylinders break the vaults and break the mass accumulation.

      Heavily dimensioned pneumatic cylinders installed in the lower part of the big bag break the vaults and break the mass accumulation (2, 4 or 6 cylinders depending on the type of product).

      Possible alternative: vibrating tray: removal tray implanted on silentblocs with vibrating motor to optimize the emptying of certain products. The massage solution can be offered as an independent equipment to prepare big bags mass before emptying.



    • commercial weighing big bag discharging
      commercial weighing big bag discharging

      Commercial dosing and weighing

      Unweighing of the big bags station for precise feeding of the process downstream.

      Weighing of the big bags station to inform the process about the amount of powder introduced. The complete big bag emptying system is installed on 4 load cells. In order to avoid any risk of the structure tipping over, the wheelbase is increased.

    • dust tight connection tube big bag unloader
      dust tight connection tube big bag unloader

      Telescopic airtight connection tube

      It allows a waterproof connection of the big-bag and ensures tension on the big-bag cuff.

      The double casing telescopic tube is tied to a flat ring via clamps. The pneumatic cylinder allows the operator to adjust the connection height to suit different types of big bags. The airtight connection is ensured by an inflatable seal and a refocusing ring produced to avoid retention.

    • regulation valve palamatic process
      regulation valve palamatic process

      Control valve

      Stop the material or regulate the flow.

      The Palamatic Process control valve is used to stop the flow of fusible materials or simply to regulate the flow rate.

      This valve is actuated by three cylinders and allows the operator to interrupt or regulate the descent of powders at any time.





    • big bag sack unloader bulk handling
      big bag sack unloader bulk handling

      Big bags unloading and DUOPAL combined bags

      Big bags and combined bags unloading which allows the bags and big bags to be opened at the same unloading point.

    • Bulk pigment handling

      Processed powders: zinc ash, zinc oxide, waelz oxide - Bulk pigment handling - The materials to be unloaded are powders whose particularity is to have very heterogeneous characteristics.
    • Double confined EasyFlow® EF200 bulk bag emptying station

      Products processed: solid coal rods - Double confined EasyFlow® EF200 bulk bag emptying station - The installation concerns two bulk bag unloading stations for high-speed, semi-automatic...
    • Cement truck filling

      Processed product: cement - Filling of truck with cement - Two EasyFlow® EF100 bulk bag unloading stations for high-speed semi-automatic unpacking .
    • Cement unloading and conveying

      Processed powder: cement - Unloading and conveying of cement - Unloading of cement from 1 ton bulk bags with pneumatic transfer of material to silo storage
    • Confined deconditioning, dosing and transfer of powders

      Processed powders: Minerals and additives (such as titanium dioxide) for the manufacture of paints - Emptying of big bags into mobile IBCs with dosing and transfer of the product to a mixer downstream...
    • Cement deconditioning

      Processed product: cement - Cement deconditioning - Autonomous bulk bag unloading system for the cement industry
    Download the booklet
    Download the sheet

    ADDITIONAL EQUIPMENT

    Bulk bag conditioner - CDM125

    Bulk Bag Conditioning, Compressed Material Discharge

    Bulk bag compactor - CBB125

    Palamatic Process manufactures FIBC unloading and bag dump stations...

    Centrifugal screener - 3 models

    Quality control and protection in production lines

    Industrial automation - Pal'Touch®

    Programmable automatons for precise monitoring and control of your...

    Centralized dust collector

    Industrial dust collection applications, Mounting on a dust collecting...
