Screw Feeder

Description

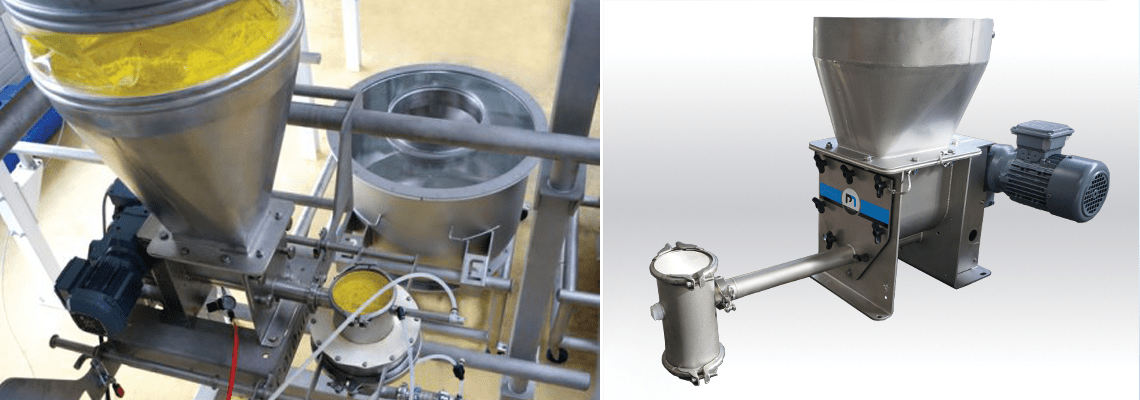

Volumetric screw feeder dosing Palamatic

Weight or volume feeding for powders and granules - High precision

The screw feeder provides a steady and controlled feed of your bulk powders, typically from a temporary storage unit like a hopper, to your downstream process. The addition of load cells allows more accurate dosing and control of the production process.

Screw feeders range

4 standard models D10, D11, D12 and D13, with flow rates from 37 to 9,666 lbs/hr.

Palamatic Process powder metering feeders enable high precision dosing of all bulk and raw materials with absolute safety.

Models	D10	D11	D12	D13
Max theorical rates in lbs/hr	37 to 219	137 to 807	402 to 2,219	1,811 to 9,966

The Palamatic Process screw feeder can be configured on the manual dosing unit for pre-weighed micro-ingredients.

Dosage accuracy

5
Hygiene

4

Loss-in-weight dosing assembly

Equipment advantages

- Regularity of flow

- Anti bridging system included

- Product compliance

- Suitable for many materials

- Easy and quick cleaning

- Easy and quick maintenance

Media

View our equipment in videos

Screw feeder Palamatic Process

The screw feeders provide a steady flow, progressive and controlled your bulk powders retained in a hopper. The addition of load cells allows more accurate dosing and control of the production process.

Industrial screw feeder

Industrial feeding

View our equipment in photos

Easyclean screw feeder

Carroussel for weight gain dosing.

volumetric dosing color pigment animal flour

Weight screw feeder

The weight screw feeder provides controlled bulk material dosing.

Screw feeder hygienic design

This version is designed to facilitate the quick disassembly of the dosing unit to facilitate the cleaning phases.

Weight feeder

The D10, D11, D12 and D13 dispensers are compatible with the installation of servo load cells.

Screw feeder Palamatic Process

Screw feeder and stirrer for precise batch or continuous dosing with an accuracy of less than 3%.

Screw feeder wheat starch

Valve to stop the flow of bulk powders and prevent moisture from rising.

Volumetric feeder

Palamatic Process screw feeders are the ideal solution for volumetric or gravimetric filling of bulk materials or raw ingredients.

Weight feeder

Dosing spiral on industrial screw feeder.

Weight feeder Palamatic Process

3 dosing systems:

- Weight feeder by weight loss

- Weight feeder by weight gain

- Continuous weight feeder

Screw feeder tank gilling

Dosage and sprinkling of ethyl cellulose in a agitated reactor under the bag dump station. The loading time is about 30 minutes, i.e. a sprinkling rate of : 31.1 kg/hour.

Volumetric screw feeder

Batching of food spices (curry) for the preparation of pre-prepared dishes.

Screw feeder with bearing pressurization

Screw feeder under weighing hopper.

Screw feeder for volumetric dosing of sulphate

Volumetric dosing Palamatic Process

The Palamatic Process volumetric screw dispenser is used to perform a uniform, progressive and controlled flow of your bulk materials retained in the hopper.

Volumetric dosing bulk materials

The weight dosage is used to automatically introduce bulk materials by batch or continuously.

Weight feeder system

The industrial dosing unit is installed on a stable platform with a very precise weighing system. The system works by weight gain or loss and achieves an accuracy of 1%.

dosing skid pneumatic conveying seeds palamatic process

Sack discharging with screw feeder

Mobile dosing skid for seeds conveying.

Screw feeder bulk materials

Dosing system for sprinkling ethyl cellulose.

Bag dump station with screw feeder

3 types of dosing screws:

- Pig tail

- Ribbon helix blade

- Helix with inner tube

Bag dump station with screw feeder

3 types of dosing screws:

- Pig tail

- Ribbon helix blade

- Helix with inner tube

vacuum conveying dosing skid sowing industry

Pneumatic conveying and dosing

Complete conditioning system (feeder, weighed filling station) mounted on a mobile frame, facilitating the cleaning of the unit.
The mobile frame is positioned at the outlet of the magnetic separator. The connection is done manually by BFM® flexible fitting.

Screw dosing system

The installation consists of discharging bags of Ethylcellulose into a bag dump station and dosing the Ethylcellulose powder from this dump station to a gravitarily fed dissolution reactor (agitated vessel).

Screw feeder Palamatic Process

Weighing of the assembly in order to inform the process on the quantity of metered bulk material. The screw feeder is installed on 3 load cells. To avoid any weighing interference, the dosing unit is connected by a flexible fitting.

Flow meter on screw feeder

Dosing device with extended dosing tube.

D12 screw feeder with air purge bearing

Feeding device equipped with a flow meter for the nuclear industry.

Micro-feeder

Microfeeders are mainly used for continuous dosing of bulk materials and granules that are not very fluid and tend to agglomerate.

Internal view screw feeder

Internal view of the Palamatic Process powder feeder.

Weight screw feeder

For a controlled dosing of raw ingredients.

Weight feeder

Weight dosing or weighing dosing is a way of guaranteeing a constant weight for each raw ingredient.

Screw feeder process

The hygienic design simplifies and shortens the cleaning process while optimizing its efficiency.

Screw feeder D11

The upstream dosing device fills the bag. The volumes are balanced via the double jacketed filling tube.

Screw feeder D11 Palamatic Process

Screw feeder for a mixing and packing line.

Pneumatic washing powder conveying

Discharge of big bags of bleaching agents for feeding a tank.

Peanuts screw feeder

Dosing of peanuts for continuous feeding of a grinding line.

D12 filler equipped with a flow meter

Screw filler on drum emptying skid.

Sack dumping with screw feeder

Deconditioning of milk powder for the production of dairy products.

Sack dumping screw feeder Palamatic Process

Deconditioning of milk powder for the production of dairy products.

Micro dosing bulk materials

Preparation and dosing station for metal powders.

Pharmaceutical powder dosing

Preparation and dosing station for metal powders.

Features

Technical specification

Flow rates may be adjusted with the installed frequency regulator. In these applications, the motors integrate forced ventilation.

There are 4 models:

D10: up to 142 l/h
D11: up to 523 l/h.
D12: up to 1,438 l/h.
D13: up to 6,458 l/h.

Models				Theorical flow
	Dosing tool	Hourly plage	Reducer ratio	Fixed speed throughput rate	Variable speed throughput rate (frequency variator)
	Type	dm³/h.	1/...	dm³/h.	dm³/h min.	dm³/h max.
D11	1 - 4 - D	0.7	10 15 (std) 28 40	98 65 35 24	14 9 7 3.5	70 48 25 17
	3	0.6	10 15 (std) 28 40	82 56 29 20	12 8 4.3 2.6	60 40 21 15
	5	0.64	10 15 (std) 28 40	90 60 32 22	13 8 4.5 3	64 43 23 16
	7	0.95	10 15 (std) 28 40	133 88 47 33	18 12 6.5 4.7	95 64 34 23
D12	1 - 2 - B	0.7	10 15 (std) 28 40	798 530 399 285 199	108 74 57 40 28	570 382 285 205 143
	3	0.6	10 15 (std) 28 40	616 410 308 220 154	84 57 44 31 21	440 295 220 158 111
	4 - 5 - D - E	0.64	10 15 (std) 28 40	1,036 688 518 370 259	140 96 74 51 37	740 496 370 266 185
D13	1 - 2 - B	5.7	10 15 (std) 28 40	3,640 2,418 1,820 1,300 910	494 338 260 181 130	2,600 1,742 1,300 936 650
	3	4.4	10 15 (std) 28 40	1,904 1,265 952 680 476	258 177 136 95 68	1,360 911 680 489 340
	4 - 5 - D - E	8.4	10 15 (std) 28 40	4,158 2,762 2,079 1,485 1,039	564 386 297 208 149	2,970 1,990 1,485 1,070 742

Composition of the feeder:

1. Body
2. Homogenization tool ensuring perfect powder down flow
3. Output tube
4. Dosing screw
5. Sealing rings included, exchangeable
6. Support plates for gear motor attachment
7. Buffer hopper

Examples of installations:

Vacuum pneumatic conveying, manual sack dumping unit and bucket filling.

Download the technical questionnaire
